MySQL 搭建MHA架構部署的步驟

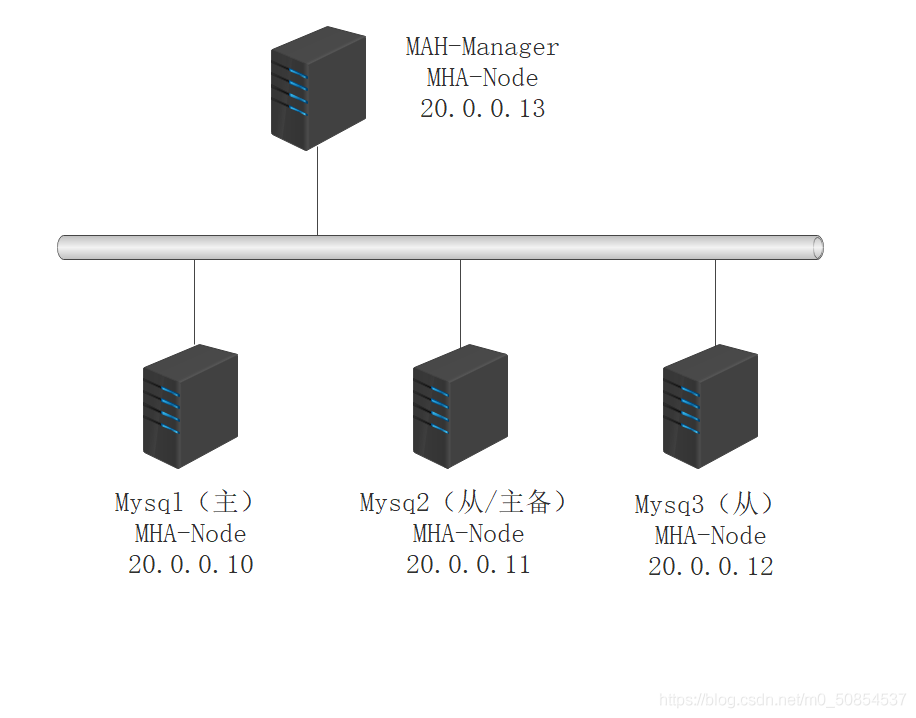

目前MHA主要支持一主多從的架構，要搭建MHA，要求一個復制集群必須最少有3臺數據庫服務器，一主二從，即一臺充當Master ,一臺充當備用Master，另一臺充當從庫。出于成本考慮，淘寶在此基礎上進行了改造，目前淘寶開發的 TMHA 已經支持一主一從。
三：MHA工作原理1.從宕機崩潰的 Master保存二進制日志事件(binlog event) ;
2.識別含有最新更新的Slave;
3.應用差異的中繼日志(relay log)到其他Slave;
4.應用從 Master 保存的二進制日志事件;
5.提升—個 Slave為新的Master;
6.使其他的 Slave 連接新的 Master 進行復制;
四：MHA的組成 Manager工具包 Node工具包1：Manager工具包
masterha_check_ssh:檢查MHA的 SSH配置情況 masterha_check_repl:檢查MySQL復制狀況 masterha_manager:啟動MHA masterha_check_status:檢測當前MHA運行狀態 masterha_master_monitor:檢測Master是否宕機 masterha_master_switch:控制故障轉移(自動或手動) masterha_conf_host:添加或刪除配置的server 信息2：Node工具包
通常由MHA Manager的腳本觸發，無需人工操作
save_binary_logs:保存和復制Master 的 binlog日志 apply_diff_relay_logs:識別差異的中級日志時間并將其應用到其他 Slave filter_mysqlbinlog:去除不必要的ROOLBACK事件（已經廢棄) purge_relay_logs:清除中繼日志（不阻塞SQL線程)五：MHA 特點 自動故障切換過程中，MHA試圖從宕機的主服務器上保存進制日志,最大程度的保證數據不丟失 使用半同步復制，可以大大降低數據丟失的風險 目前MHA支持一主多從架構，最少三臺服務，即一主兩從MHA 架構部署一：拓撲圖
MySQL 版本使用 5.6.36、cmake 版本使用 2.8.6
1：安裝編譯依賴的環境
[root@master ~]# yum -y install ncurses-devel gcc-c++ perl-Module-Install
2.：安裝 gmake 編譯軟件
[root@master ~]# tar zxvf cmake-2.8.6.tar.gz[root@master ~]# cd cmake-2.8.6[root@master cmake-2.8.6]# ./configure[root@master cmake-2.8.6]# gmake && gmake install
3：安裝 MySQL 數據庫
[root@master ~]# tar -zxvf mysql-5.6.36.tar.gz[root@master ~]# cd mysql-5.6.36[root@master mysql-5.6.36]# cmake -DCMAKE_INSTALL_PREFIX=/usr/local/mysql -DDEFAULT_CHARSET=utf8 -DDEFAULT_COLLATION=utf8_general_ci -DWITH_EXTRA_CHARSETS=all -DSYSCONFDIR=/etc[root@master mysql-5.6.36]# make && make install[root@master mysql-5.6.36]# cp support-files/my-default.cnf /etc/my.cnf[root@master mysql-5.6.36]# cp support-files/mysql.server /etc/rc.d/init.d/mysqld[root@master ~]# chmod +x /etc/rc.d/init.d/mysqld[root@master ~]# chkconfig --add mysqld[root@master ~]# echo 'PATH=$PATH:/usr/local/mysql/bin' >> /etc/profile[root@master ~]# source /etc/profilechown -R mysql.mysql /usr/local/mysql groupadd mysql[root@master ~]# useradd -M -s /sbin/nologin mysql -g mysql[root@master ~]# chown -R mysql.mysql /usr/local/mysql[root@master ~]# mkdir -p /data/mysql[root@master ~]# /usr/local/mysql/scripts/mysql_install_db --basedir=/usr/local/mysql --datadir=/usr/local/mysql/data --user=mysql
4：修改 Master 的主配置文件/etc/my.cnf 文件
將原來配置全部刪除
[root@master ~]# vi /etc/my.cnf[client]port = 3306socket = /usr/local/mysql/mysql.sock[mysql]port = 3306socket = /usr/local/mysql/mysql.sock[mysqld]user = mysqlbasedir = /usr/local/mysqldatadir = /usr/local/mysql/dataport = 3306pid-file = /usr/local/mysql/mysqld.pidsocket = /usr/local/mysql/mysql.sockserver-id = 1log_bin = master-binlog-slave-updates = truesql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES
另外兩臺 slave 數據庫
三臺服務器的 server-id 不能一樣，其余一樣正常寫入
server-id = 2log_bin = master-binrelay-log = relay-log-bin relay-log-index = slave-relay-bin.index
server-id = 3log_bin = master-binrelay-log = relay-log-bin relay-log-index = slave-relay-bin.index
5：三臺數據庫分別做兩個軟鏈接，軟鏈接是為 HMA 服務的
[root@master ~]# ln -s /usr/local/mysql/bin/mysql /usr/sbin/[root@master ~]# ln -s /usr/local/mysql/bin/mysqlbinlog /usr/sbin/
6：三臺數據庫啟動 MySQL
[root@master ~]# /usr/local/mysql/bin/mysqld_safe --user=mysql &[root@master ~]# service mysqld restart Shutting down MySQL.. SUCCESS! Starting MySQL. SUCCESS!三：數據庫配置主從同步
登錄數據庫
[root@master ~]# mysql
1：在所有數據庫節點上授權兩個用戶，一個是從庫同步使用，另外一個是 manager 使用
mysql> grant replication slave on *.* to ’myslave’@’20.0.0.%’ identified by ’123’;mysql> grant all privileges on *.* to ’mha’@’20.0.0.%’ identified by ’manager’;mysql> flush privileges;
2：下面三條授權按理論是不用添加的，但是做案例實驗環境時候通過 MHA 檢查MySQL 主從有報錯，報兩個從庫通過主機名連接不上主庫，所以所有數據庫加上下面的授權。
mysql> grant all privileges on *.* to ’mha’@’master’ identified by ’manager’;mysql> grant all privileges on *.* to ’mha’@’slave1’ identified by ’manager’;mysql> grant all privileges on *.* to ’mha’@’slave2’ identified by ’manager’;
3：在 master 主機上查看二進制文件和同步點
mysql> show master status;+-------------------+----------+--------------+------------------+-------------------+| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |+-------------------+----------+--------------+------------------+-------------------+| master-bin.000001 | 608 | | | |+-------------------+----------+--------------+------------------+-------------------+1 row in set (0.00 sec)
4：在 slave1 和 slave2 分別執行同步
mysql> change master to master_host=’20.0.0.10’,master_user=’myslave’,master_password=’123’,master_log_file=’master-bin.000001’,master_log_pos=608mysql> start slave;
5：查看 IO 和 SQL 線程都是 yes 代表同步是否正常
mysql> show slave statusG;*************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 20.0.0.10 Master_User: myslave Master_Port: 3306 Connect_Retry: 60 Master_Log_File: master-bin.000001 Read_Master_Log_Pos: 608 Relay_Log_File: relay-log-bin.000002 Relay_Log_Pos: 284 Relay_Master_Log_File: master-bin.000001 Slave_IO_Running: Yes Slave_SQL_Running: Yes Replicate_Do_DB: Replicate_Ignore_DB:
必須設置兩個從庫為只讀模式
mysql> set global read_only=1;
6：在 master 主庫插入兩條數據，測試是否同步
mysql> create database test_db;Query OK, 1 row affected (0.00 sec)mysql> use test_db;Database changedmysql> create table test(id int);Query OK, 0 rows affected (0.13 sec)mysql> insert into test(id) values (1);Query OK, 1 row affected (0.03 sec)
7：在兩個從庫分別查詢如下所示說明主從同步正常
mysql> select * from test_db.test;+------+| id |+------+| 1 |+------+1 row in set (0.00 sec)四：安裝 MHA 軟件
1：所有服務器上都安裝 MHA 依賴的環境，首先安裝 epel 源（3+1）
[root@master ~]# cd /etc/yum.repos.d/[root@master yum.repos.d]# ll總用量 20drwxr-xr-x. 2 root root 187 10月 10 18:08 backup-rw-r--r--. 1 root root 1458 12月 28 23:07 CentOS7-Base-163.repo-rw-r--r--. 1 root root 951 12月 29 14:52 epel.repo-rw-r--r--. 1 root root 1050 11月 1 04:33 epel.repo.rpmnew-rw-r--r--. 1 root root 1149 11月 1 04:33 epel-testing.repo-rw-r--r--. 1 root root 228 10月 27 18:43 local.repo
三臺數據庫加上一臺 mha-manager
[root@mha-manager ~]# yum install epel-release --nogpgcheck[root@mha-manager ~]# yum install -y perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-ParalExtUtils-CBuilder perl-ExtUtils-MakeMaker perl-CPAN
2：在所有服務器上必須先安裝 node 組件 （3+1）
[root@mha-manager ~]# tar zxvf mha4mysql-node-0.57.tar.gz[root@mha-manager ~]# cd mha4mysql-node-0.57[root@mha-manager mha4mysql-node-0.57]# perl Makefile.PL[root@mha-manager mha4mysql-node-0.57]# make && make install
3：在 mha-manager 上安裝 manager 組件
[root@mha-manager ~]# tar zxvf mha4mysql-manager-0.57.tar.gz [root@mha-manager ~]# cd mha4mysql-manager-0.57/[root@mha-manager mha4mysql-manager-0.57]# perl Makefile.PL[root@mha-manager mha4mysql-manager-0.57]# make && make install

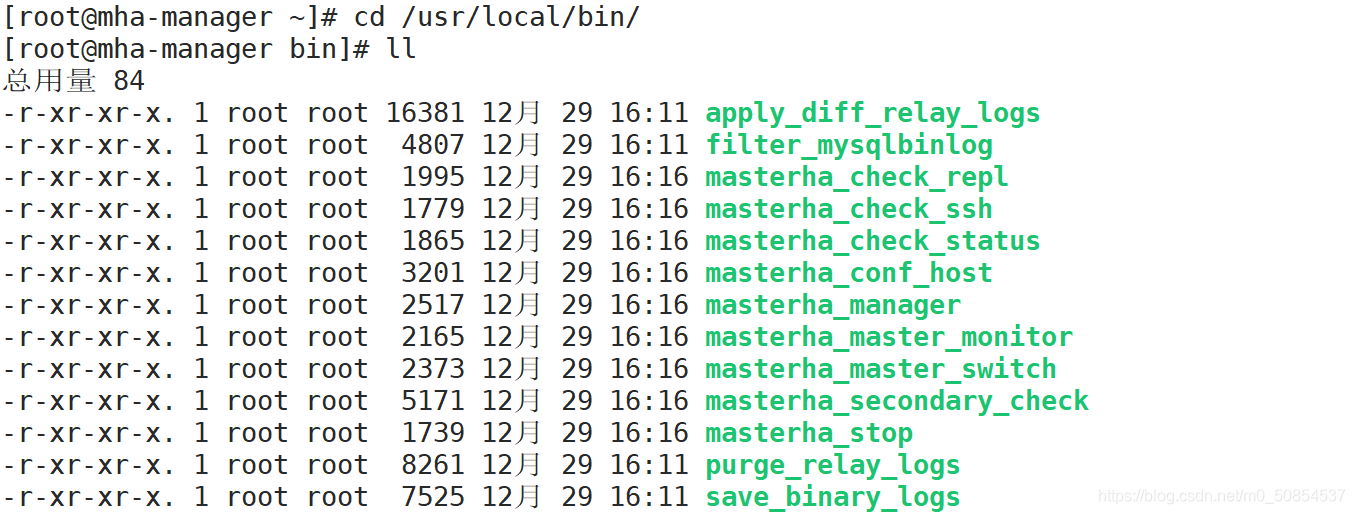

manager 安裝后在/usr/local/bin 下面會生成幾個工具
masterha_check_ssh 檢查 MHA 的 SSH 配置狀況masterha_check_repl 檢查 MySQL 復制狀況masterha_manger 啟動 manager的腳本masterha_check_status 檢測當前 MHA 運行狀態masterha_master_monitor 檢測 master 是否宕機masterha_master_switch 控制故障轉移（自動或者手動）masterha_conf_host 添加或刪除配置的 server 信息masterha_stop 關閉manager

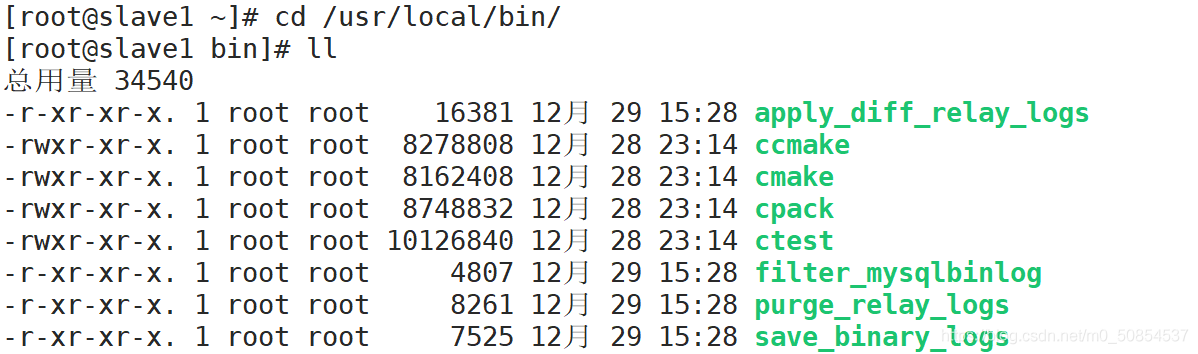

node 安裝后也會在/usr/local/bin 下面會生成幾個腳本
save_binary_logs 保存和復制 master 的二進制日志
apply_diff_relay_logs 識別差異的中繼日志事件并將其差異的事件應用于其他的 slave
filter_mysqlbinlog 去除不必要的 ROLLBACK 事件（MHA 已不再使用這個工具）
purge_relay_logs 清除中繼日志（不會阻塞 SQL 線程）
五：配置無密碼認證1：在 manager 上配置到所有節點的無密碼認證
（1）生成密鑰
[root@mha-manager ~]# ssh-keygen -t rsa # 一直回車
（2）生成密鑰之后發送給其他3個數據庫
[root@mha-manager ~]# ssh-copy-id 20.0.0.10 # 輸入：yes 密碼：123456[root@mha-manager ~]# ssh-copy-id 20.0.0.11[root@mha-manager ~]# ssh-copy-id 20.0.0.12
（3）登錄測試
[root@mha-manager ~]# ssh root@20.0.0.10Last login: Tue Dec 29 14:52:09 2020 from 20.0.0.1[root@master ~]# exit登出Connection to 20.0.0.10 closed.[root@mha-manager ~]# ssh root@20.0.0.11Last login: Tue Dec 29 13:20:07 2020 from 20.0.0.1[root@slave1 ~]# exit登出Connection to 20.0.0.11 closed.[root@mha-manager ~]# ssh root@20.0.0.12Last login: Tue Oct 27 19:45:24 2020 from 20.0.0.1[root@slave2 ~]# exit登出Connection to 20.0.0.12 closed.
2：在 master 上配置到數據庫節點的無密碼認證
（1）生成密鑰
[root@master ~]# ssh-keygen -t rsa
（2）生成密鑰之后發送給其他2個數據庫
[root@master ~]# ssh-copy-id 20.0.0.11[root@master ~]# ssh-copy-id 20.0.0.12
（3）登錄測試
[root@master ~]# ssh root@20.0.0.11Last login: Tue Dec 29 16:40:06 2020 from 20.0.0.13[root@slave1 ~]# exit登出Connection to 20.0.0.11 closed.[root@master ~]# ssh root@20.0.0.12Last login: Tue Oct 27 23:05:20 2020 from 20.0.0.13[root@slave2 ~]# exit登出Connection to 20.0.0.12 closed.
3：在 slave1 上配置到數據庫節點的無密碼認證
（1）生成密鑰
[root@slave1 ~]# ssh-keygen -t rsa
（2）生成密鑰之后發送給其他2個數據庫
[root@slave1 ~]# ssh-copy-id 20.0.0.10[root@slave1 ~]# ssh-copy-id 20.0.0.12
（3）登錄測試
[root@slave1 ~]# ssh root@20.0.0.10Last login: Tue Dec 29 16:39:55 2020 from 20.0.0.13[root@master ~]# exit登出Connection to 20.0.0.10 closed.[root@slave1 ~]# ssh root@20.0.0.12Last login: Tue Oct 27 23:14:06 2020 from 20.0.0.10[root@slave2 ~]# exit登出Connection to 20.0.0.12 closed.
4：在 slave2 上配置到數據庫節點的無密碼認證
（1）生成密鑰
[root@slave2 ~]# ssh-keygen -t rsa
（2）生成密鑰之后發送給其他2個數據庫
[root@slave2 ~]# ssh-copy-id 20.0.0.10[root@slave2 ~]# ssh-copy-id 20.0.0.11
（3）登錄測試
[root@slave2 ~]# ssh root@20.0.0.10Last login: Tue Dec 29 16:59:43 2020 from 20.0.0.11[root@master ~]# exit登出Connection to 20.0.0.10 closed.[root@slave2 ~]# ssh root@20.0.0.11Last login: Tue Dec 29 16:48:51 2020 from 20.0.0.10[root@slave1 ~]# exit登出Connection to 20.0.0.11 closed.六：配置 MHA
1：在 manager 節點上復制相關腳本到/usr/local/bin 目錄
（1）拷貝
[root@mha-manager ~]# cp -ra /root/mha4mysql-manager-0.57/samples/scripts/ /usr/local/bin/

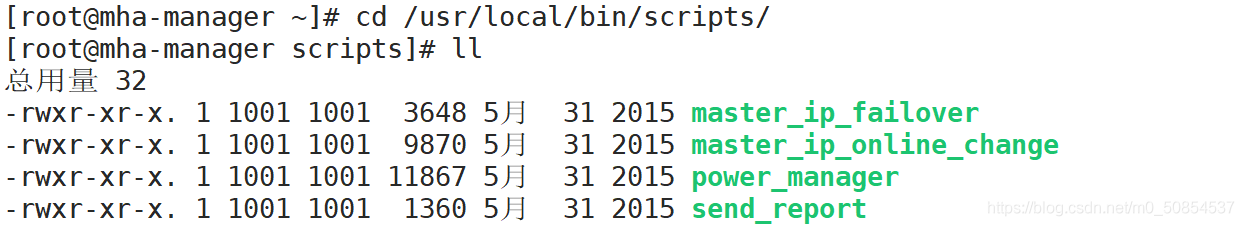

（2）拷貝后會有四個執行文件
master_ip_failover #自動切換時 VIP 管理的腳本
master_ip_online_change #在線切換時 vip 的管理
power_manager #故障發生后關閉主機的腳本
send_report #因故障切換后發送報警的腳本

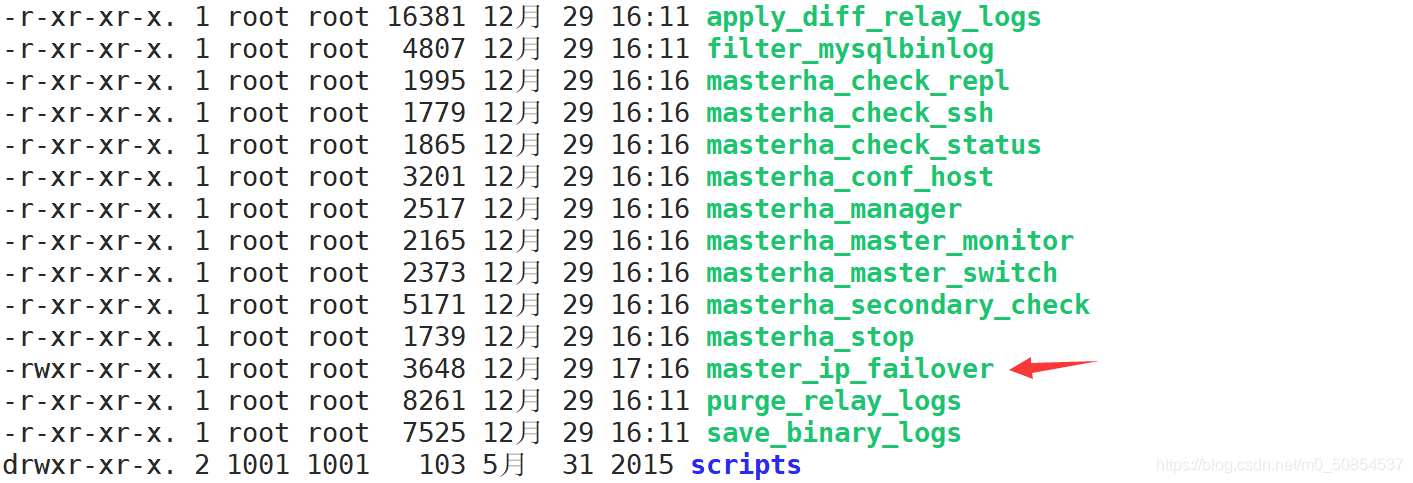

（3）復制上述的自動切換時 VIP 管理的腳本到/usr/local/bin 目錄，這里使用腳本管理 VIP
[root@mha-manager scripts]# cp master_ip_failover /usr/local/bin/[root@mha-manager scripts]# cd ..[root@mha-manager bin]# ll總用量 88
2：修改自動切換腳本
[root@mha-manager ~]# vi /usr/local/bin/master_ip_failover # 刪除里面所有內容#!/usr/bin/env perluse strict;use warnings FATAL => ’all’;use Getopt::Long;my ($command, $ssh_user, $orig_master_host, $orig_master_ip,$orig_master_port, $new_master_host, $new_master_ip, $new_master_port);#############################添加內容部分#########################################my $vip = ’20.0.0.200’;my $brdc = ’20.0.0.255’;my $ifdev = ’ens33’;my $key = ’1’;my $ssh_start_vip = '/sbin/ifconfig ens33:$key $vip';my $ssh_stop_vip = '/sbin/ifconfig ens33:$key down';my $exit_code = 0;#my $ssh_start_vip = '/usr/sbin/ip addr add $vip/24 brd $brdc dev $ifdev label $ifdev:$key;/usr/sbin/arping -q -A -c 1 -I $ifdev $vip;iptables -F;';#my $ssh_stop_vip = '/usr/sbin/ip addr del $vip/24 dev $ifdev label $ifdev:$key';##################################################################################GetOptions(’command=s’ => $command,’ssh_user=s’ => $ssh_user,’orig_master_host=s’ => $orig_master_host,’orig_master_ip=s’ => $orig_master_ip,’orig_master_port=i’ => $orig_master_port,’new_master_host=s’ => $new_master_host,’new_master_ip=s’ => $new_master_ip,’new_master_port=i’ => $new_master_port,);exit &main();sub main {print 'nnIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===nn';if ( $command eq 'stop' || $command eq 'stopssh' ) {my $exit_code = 1;eval {print 'Disabling the VIP on old master: $orig_master_host n';&stop_vip();$exit_code = 0;};if ($@) {warn 'Got Error: $@n';exit $exit_code;}exit $exit_code;}elsif ( $command eq 'start' ) {my $exit_code = 10;eval {print 'Enabling the VIP - $vip on the new master - $new_master_host n';&start_vip();$exit_code = 0;};if ($@) {warn $@;exit $exit_code;}exit $exit_code;}elsif ( $command eq 'status' ) {print 'Checking the Status of the script.. OK n';exit 0;}else {&usage();exit 1;}}sub start_vip() {`ssh $ssh_user@$new_master_host ' $ssh_start_vip '`;}# A simple system call that disable the VIP on the old_mastersub stop_vip() {`ssh $ssh_user@$orig_master_host ' $ssh_stop_vip '`;}sub usage {print'Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=portn';}
3：創建 MHA 軟件目錄并拷貝配置文件
[root@mha-manager ~]# mkdir /etc/mha[root@mha-manager ~]# cp mha4mysql-manager-0.57/samples/conf/app1.cnf /etc/mha[root@mha-manager ~]# vi /etc/mha/app1.cnf[server default]manager_workdir=/var/log/masterha/app1manager_log=/var/log/masterha/app1/manager.logmaster_binlog_dir=/usr/local/mysql/datamaster_ip_failover_script=/usr/local/bin/master_ip_failovermaster_ip_online_change_script=/usr/local/bin/master_ip_online_changepassword=manageruser=mhaping_interval=1remote_workdir=/tmprepl_password=123repl_user=myslavesecondary_check_script=/usr/local/bin/masterha_secondary_check -s 20.0.0.11 -s 20.0.0.12shutdown_script=''ssh_user=root[server1]hostname=20.0.0.10port=3306[server2]hostname=20.0.0.11port=3306candidate_master=1check_repl_delay=0[server3]hostname=20.0.0.12port=3306七：健康檢查
1：測試 ssh 無密碼認證，如果正常最后會輸出 successfully
[root@mha-manager ~]# masterha_check_ssh--conf=<server_config_file> must be set.[root@mha-manager ~]# masterha_check_ssh --conf=/etc/mha/app1.cnfTue Dec 29 20:19:16 2020 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.Tue Dec 29 20:19:16 2020 - [info] Reading application default configuration from /etc/mha/app1.cnf..Tue Dec 29 20:19:16 2020 - [info] Reading server configuration from /etc/mha/app1.cnf..Tue Dec 29 20:19:16 2020 - [info] Starting SSH connection tests..Tue Dec 29 20:19:17 2020 - [debug] Tue Dec 29 20:19:16 2020 - [debug] Connecting via SSH from root@20.0.0.10(20.0.0.10:22) to root@20.0.0.11(20.0.0.11:22)..Tue Dec 29 20:19:16 2020 - [debug] ok.Tue Dec 29 20:19:16 2020 - [debug] Connecting via SSH from root@20.0.0.10(20.0.0.10:22) to root@20.0.0.12(20.0.0.12:22)..Tue Dec 29 20:19:17 2020 - [debug] ok.Tue Dec 29 20:19:18 2020 - [debug] Tue Dec 29 20:19:17 2020 - [debug] Connecting via SSH from root@20.0.0.12(20.0.0.12:22) to root@20.0.0.10(20.0.0.10:22)..Tue Dec 29 20:19:17 2020 - [debug] ok.Tue Dec 29 20:19:17 2020 - [debug] Connecting via SSH from root@20.0.0.12(20.0.0.12:22) to root@20.0.0.11(20.0.0.11:22)..Tue Dec 29 20:19:18 2020 - [debug] ok.Tue Dec 29 20:19:18 2020 - [debug] Tue Dec 29 20:19:16 2020 - [debug] Connecting via SSH from root@20.0.0.11(20.0.0.11:22) to root@20.0.0.10(20.0.0.10:22)..Tue Dec 29 20:19:17 2020 - [debug] ok.Tue Dec 29 20:19:17 2020 - [debug] Connecting via SSH from root@20.0.0.11(20.0.0.11:22) to root@20.0.0.12(20.0.0.12:22)..Tue Dec 29 20:19:17 2020 - [debug] ok.Tue Dec 29 20:19:18 2020 - [info] All SSH connection tests passed successfully.
2：測試 MySQL 主從連接情況，最后出現 MySQL Replication Health is OK 字樣說明
[root@mha-manager ~]# masterha_check_repl --conf=/etc/mha/app1.cnfTue Dec 29 20:30:29 2020 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.Tue Dec 29 20:30:29 2020 - [info] Reading application default configuration from /etc/mha/app1.cnf..Tue Dec 29 20:30:29 2020 - [info] Reading server configuration from /etc/mha/app1.cnf..Tue Dec 29 20:30:29 2020 - [info] MHA::MasterMonitor version 0.57.Tue Dec 29 20:30:30 2020 - [info] GTID failover mode = 0Tue Dec 29 20:30:30 2020 - [info] Dead Servers:Tue Dec 29 20:30:30 2020 - [info] Alive Servers:Tue Dec 29 20:30:30 2020 - [info] 20.0.0.10(20.0.0.10:3306)Tue Dec 29 20:30:30 2020 - [info] 20.0.0.11(20.0.0.11:3306)Tue Dec 29 20:30:30 2020 - [info] 20.0.0.12(20.0.0.12:3306)Tue Dec 29 20:30:30 2020 - [info] Alive Slaves:Tue Dec 29 20:30:30 2020 - [info] 20.0.0.11(20.0.0.11:3306) Version=5.6.36-log (oldest major version between slaves) log-bin:enabled.......省略Checking the Status of the script.. OK Tue Dec 29 20:30:55 2020 - [info] OK.Tue Dec 29 20:30:55 2020 - [warning] shutdown_script is not defined.Tue Dec 29 20:30:55 2020 - [info] Got exit code 0 (Not master dead).MySQL Replication Health is OK.八：查看 master1 的 VIP 地址
查看 20.0.0.200 是否存在
這個 VIP 地址不會因為manager 節點停止 MHA 服務而消失
第一次啟動mha，主庫上并不會主動的生成vip地址，需要手動開啟
[root@master ~]# ifconfig ens33:1 20.0.0.200/24 up[root@master ~]# ip addr2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether 00:0c:29:8d:e2:af brd ff:ff:ff:ff:ff:ff inet 20.0.0.10/24 brd 20.0.0.255 scope global ens33 valid_lft forever preferred_lft forever inet 20.0.0.200/24 brd 20.0.0.255 scope global secondary ens33:1 valid_lft forever preferred_lft forever inet6 fe80::a6c1:f3d4:160:102a/64 scope link valid_lft forever preferred_lft forever九：啟動 MHA 并查看狀態
[root@mha-manager ~]# nohup masterha_manager --conf=/etc/mha/app1.cnf --remove_dead_master_conf --ignore_last_failover < /dev/null > /var/log/masterha/app1/manager.log 2>&1 &[1] 57152[root@mha-manager ~]# masterha_check_status --conf=/etc/mha/app1.cnfapp1 (pid:57152) is running(0:PING_OK), master:20.0.0.10故障模擬與修復一：故障模擬
1：將 master 主服務器 down 掉
[root@master ~]# pkill mysqld
2：查看日志信息
[root@mha-manager ~]# cat /var/log/masterha/app1/manager.logmaster 20.0.0.10(20.0.0.10:3306) is down! # 20.0.0.10 以停掉Check MHA Manager logs at mha-manager:/var/log/masterha/app1/manager.log for details.Started automated(non-interactive) failover.Invalidated master IP address on 20.0.0.10(20.0.0.10:3306)The latest slave 20.0.0.11(20.0.0.11:3306) has all relay logs for recovery.Selected 20.0.0.11(20.0.0.11:3306) as a new master. # 20.0.0.11 成為主服務器20.0.0.11(20.0.0.11:3306): OK: Applying all logs succeeded.20.0.0.11(20.0.0.11:3306): OK: Activated master IP address.20.0.0.12(20.0.0.12:3306): This host has the latest relay log events.Generating relay diff files from the latest slave succeeded.
3：查看虛擬地址
虛擬地址已到 20.0.0.11 上面
[root@slave1 ~]# ip addr2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether 00:0c:29:49:77:39 brd ff:ff:ff:ff:ff:ff inet 20.0.0.11/24 brd 20.0.0.255 scope global ens33 valid_lft forever preferred_lft forever inet 20.0.0.200/8 brd 20.255.255.255 scope global ens33:1 valid_lft forever preferred_lft forever inet6 fe80::5cbb:1621:4281:3b24/64 scope link valid_lft forever preferred_lft forever
4：查看主從狀態
查看主服務器的二進制文件
[root@slave1 ~]# mysqlmysql> show master status;+-------------------+----------+--------------+------------------+-------------------+| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |+-------------------+----------+--------------+------------------+-------------------+| master-bin.000003 | 120 | | | |+-------------------+----------+--------------+------------------+-------------------+1 row in set (0.00 sec)
查看從2的狀態
[root@slave2 ~]# mysqlmysql> show slave statusG;*************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 20.0.0.11 Master_User: myslave Master_Port: 3306 Connect_Retry: 60 Master_Log_File: master-bin.000003 Read_Master_Log_Pos: 120 Relay_Log_File: relay-log-bin.000002 Relay_Log_Pos: 284 Relay_Master_Log_File: master-bin.000003 Slave_IO_Running: Yes Slave_SQL_Running: Yes Replicate_Do_DB: Replicate_Ignore_DB: 二：故障修復
1：開啟 down 掉的數據庫
[root@master ~]# systemctl start mysqld[root@master ~]# systemctl status mysqld● mysqld.service - LSB: start and stop MySQL Loaded: loaded (/etc/rc.d/init.d/mysqld; bad; vendor preset: disabled) Active: active (running) since 二 2020-12-29 21:50:03 CST; 25s ago Docs: man:systemd-sysv-generator(8) Process: 977 ExecStart=/etc/rc.d/init.d/mysqld start (code=exited, status=0/SUCCESS) CGroup: /system.slice/mysqld.service ├─1026 /bin/sh /usr/local/mysql/bin/mysqld_safe --datadir=/usr/local/mysql/data --pid-fi... └─1358 /usr/local/mysql/bin/mysqld --basedir=/usr/local/mysql --datadir=/usr/local/m
2：down 掉的數據庫進行主從復制
主從復制
[root@master ~]# mysqlmysql> change master to master_host=’20.0.0.11’,master_user=’myslave’,master_password=’123’,master_log_file=’master-bin.000003’,master_log_pos=120; Query OK, 0 rows affected, 2 warnings (0.01 sec)# 20.0.0.11 是主服務器 down 掉之后成為的主服務器mysql> start slave;Query OK, 0 rows affected (0.01 sec)
查看狀態
mysql> show slave statusG;*************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 20.0.0.11 Master_User: myslave Master_Port: 3306 Connect_Retry: 60 Master_Log_File: master-bin.000003 Read_Master_Log_Pos: 120 Relay_Log_File: mysqld-relay-bin.000002 Relay_Log_Pos: 284 Relay_Master_Log_File: master-bin.000003 Slave_IO_Running: Yes Slave_SQL_Running: Yes Replicate_Do_DB: Replicate_Ignore_DB:
3：修改 mha 配置文件
[root@mha-manager ~]# vi /etc/mha/app1.cnfsecondary_check_script=/usr/local/bin/masterha_secondary_check -s 20.0.0.10 -s 20.0.0.12# 由于 20.0.0.11 成為主服務器，所以要添加 20.0.0.10 和 20.0.0.12 為從服務器[server1]hostname=20.0.0.10candidate_master=1check_repl_delay=0port=3306[server2]hostname=20.0.0.11port=3306# 由于 20.0.0.10 down 掉，所以 server1 文件自動刪除，重新添加 server1，并設為備選主服務器，server2 修改
4：進入數據庫重新授權
[root@master ~]# mysqlmysql> grant all privileges on *.* to ’mha’@’master’ identified by ’manager’;Query OK, 0 rows affected (0.00 sec)mysql> flush privileges;Query OK, 0 rows affected (0.00 sec)
5：再次啟動 mha
[root@mha-manager ~]# nohup masterha_manager --conf=/etc/mha/app1.cnf --remove_dead_master_conf --ignore_last_failover < /dev/null > /var/log/masterha/app1/manager.log 2>&1 &[1] 58927[root@mha-manager ~]# masterha_check_status --conf=/etc/mha/app1.cnfapp1 (pid:58927) is running(0:PING_OK), master:20.0.0.11
6：再次查看日志
[root@mha-manager ~]# cat /var/log/masterha/app1/manager.log......Tue Dec 29 22:16:53 2020 - [info] Dead Servers: # 停掉的服務Tue Dec 29 22:16:53 2020 - [info] Alive Servers: # 存活的服務Tue Dec 29 22:16:53 2020 - [info] 20.0.0.10(20.0.0.10:3306)Tue Dec 29 22:16:53 2020 - [info] 20.0.0.11(20.0.0.11:3306)Tue Dec 29 22:16:53 2020 - [info] 20.0.0.12(20.0.0.12:3306).......
7：主數據庫寫入數據同步并查看
其他數據庫都可以查到
mysql> create database ooo;Query OK, 1 row affected (0.00 sec)mysql> show databases;+--------------------+| Database |+--------------------+| information_schema || mysql || ooo || performance_schema || test || test_db |+--------------------+6 rows in set (0.00 sec)
到此這篇關于MySQL 搭建MHA架構部署的步驟的文章就介紹到這了,更多相關MySQL 搭建MHA架構部署內容請搜索好吧啦網以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持好吧啦網！
