前言

平常項目開發過程中，會遇到登錄攔截，權限校驗，參數處理，防重復提交等問題，那攔截器就能幫我們統一處理這些問題。

一、實現方式

1.1 自定義攔截器

自定義攔截器，即攔截器的實現類，一般有兩種自定義方式：

定義一個類，實現org.springframework.web.servlet.HandlerInterceptor接口。

定義一個類，繼承已實現了HandlerInterceptor接口的類，例如org.springframework.web.servlet.handler.HandlerInterceptorAdapter抽象類。

1.2 添加Interceptor攔截器到WebMvcConfigurer配置器中

自定義配置器，然后實現WebMvcConfigurer配置器。

以前一般繼承org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter類，不過SrpingBoot 2.0以上WebMvcConfigurerAdapter類就過時了。有以下2中替代方法：

直接實現org.springframework.web.servlet.config.annotation.WebMvcConfigurer接口。（推薦）

繼承org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport類。但是繼承WebMvcConfigurationSupport會讓SpringBoot對mvc的自動配置失效。不過目前大多數項目是前后端分離，并沒有對靜態資源有自動配置的需求，所以繼承WebMvcConfigurationSupport也未嘗不可。

二、HandlerInterceptor 方法介紹

preHandle：預處理，在業務處理器處理請求之前被調用，可以進行登錄攔截，編碼處理、安全控制、權限校驗等處理；

default boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {return true;}

postHandle：后處理，在業務處理器處理請求執行完成后，生成視圖之前被調用。即調用了Service并返回ModelAndView，但未進行頁面渲染，可以修改ModelAndView，這個比較少用。

default void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler,@Nullable ModelAndView modelAndView) throws Exception {}

afterCompletion：返回處理，在DispatcherServlet完全處理完請求后被調用，可用于清理資源等。已經渲染了頁面。

default void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler,@Nullable Exception ex) throws Exception {}

三、攔截器（Interceptor）實現

3.1 實現HandlerInterceptor

此攔截器演示了通過注解形式，對用戶權限進行攔截校驗。

package com.nobody.interceptor;import com.nobody.annotation.UserAuthenticate;import com.nobody.context.UserContext;import com.nobody.context.UserContextManager;import com.nobody.exception.RestAPIError;import com.nobody.exception.RestException;import lombok.extern.slf4j.Slf4j;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Component;import org.springframework.web.method.HandlerMethod;import org.springframework.web.servlet.HandlerInterceptor;import org.springframework.web.servlet.ModelAndView;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;/** * @Description * @Author Mr.nobody * @Date 2020/10/25 * @Version 1.0 */@Slf4j@Componentpublic class UserPermissionInterceptor implements HandlerInterceptor { private UserContextManager userContextManager; @Autowired public void setContextManager(UserContextManager userContextManager) { this.userContextManager = userContextManager; } @Override public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) { log.info('>>> UserPermissionInterceptor preHandle -- '); if (handler instanceof HandlerMethod) { HandlerMethod handlerMethod = (HandlerMethod) handler; // 獲取用戶權限校驗注解(優先獲取方法，無則再?gòu)念惈@取) UserAuthenticate userAuthenticate = handlerMethod.getMethod().getAnnotation(UserAuthenticate.class); if (null == userAuthenticate) {userAuthenticate = handlerMethod.getMethod().getDeclaringClass() .getAnnotation(UserAuthenticate.class); } if (userAuthenticate != null && userAuthenticate.permission()) {// 獲取用戶信息UserContext userContext = userContextManager.getUserContext(request);// 權限校驗if (userAuthenticate.type() != userContext.getType()) { // 如若不拋出異常，也可返回false throw new RestException(RestAPIError.AUTH_ERROR);} } } return true; } @Override public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) { log.info('>>> UserPermissionInterceptor postHandle -- '); } @Override public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) { log.info('>>> UserPermissionInterceptor afterCompletion -- '); }}

3.2 繼承HandlerInterceptorAdapter

package com.nobody.interceptor;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import org.springframework.stereotype.Component;import lombok.extern.slf4j.Slf4j;import org.springframework.web.servlet.ModelAndView;import org.springframework.web.servlet.handler.HandlerInterceptorAdapter;/** * @Description * @Author Mr.nobody * @Date 2020/10/25 * @Version 1.0 */@Slf4j@Componentpublic class UserPermissionInterceptorAdapter extends HandlerInterceptorAdapter { @Override public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) { log.info('>>> UserPermissionInterceptorAdapter preHandle -- '); return true; } @Override public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) { log.info('>>> UserPermissionInterceptorAdapter postHandle -- '); } @Override public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) { log.info('>>> UserPermissionInterceptorAdapter afterCompletion -- '); }}

四、配置器（WebMvcConfigurer）實現

4.1 實現WebMvcConfigurer（推薦）

package com.nobody.config;import com.nobody.context.UserContextResolver;import com.nobody.interceptor.UserPermissionInterceptor;import com.nobody.interceptor.UserPermissionInterceptorAdapter;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Configuration;import org.springframework.web.method.support.HandlerMethodArgumentResolver;import org.springframework.web.servlet.config.annotation.InterceptorRegistry;import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;import java.util.List;/** * @Description * @Author Mr.nobody * @Date 2020/10/25 * @Version 1.0 */@Configurationpublic class WebAppConfigurer implements WebMvcConfigurer { private UserPermissionInterceptor userPermissionInterceptor; private UserPermissionInterceptorAdapter userPermissionInterceptorAdapter; private UserContextResolver userContextResolver; @Autowired public void setUserPermissionInterceptor(UserPermissionInterceptor userPermissionInterceptor) { this.userPermissionInterceptor = userPermissionInterceptor; } @Autowired public void setUserPermissionInterceptorAdapter( UserPermissionInterceptorAdapter userPermissionInterceptorAdapter) { this.userPermissionInterceptorAdapter = userPermissionInterceptorAdapter; } @Autowired public void setUserContextResolver(UserContextResolver userContextResolver) { this.userContextResolver = userContextResolver; } @Override public void addInterceptors(InterceptorRegistry registry) { // 可以添加多個攔截器，一般只添加一個 // addPathPatterns('/**') 表示對所有請求都攔截 // .excludePathPatterns('/base/index') 表示排除對/base/index請求的攔截 // 多個攔截器可以設置order順序，值越小，preHandle越先執行，postHandle和afterCompletion越后執行 // order默認的值是0，如果只添加一個攔截器，可以不顯示設置order的值 registry.addInterceptor(userPermissionInterceptor).addPathPatterns('/**').excludePathPatterns('/base/index').order(0); // registry.addInterceptor(userPermissionInterceptorAdapter).addPathPatterns('/**') // .excludePathPatterns('/base/index').order(1); } @Override public void addArgumentResolvers(List<HandlerMethodArgumentResolver> resolvers) { resolvers.add(userContextResolver); }}

4.2 繼承WebMvcConfigurationSupport

package com.nobody.config;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Configuration;import org.springframework.web.servlet.config.annotation.InterceptorRegistry;import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;import com.nobody.interceptor.UserPermissionInterceptor;import com.nobody.interceptor.UserPermissionInterceptorAdapter;/** * @Description * @Author Mr.nobody * @Date 2020/10/25 * @Version 1.0 */@Configurationpublic class WebAppConfigurerSupport extends WebMvcConfigurationSupport { @Autowired private UserPermissionInterceptor userPermissionInterceptor; // @Autowired // private UserPermissionInterceptorAdapter userPermissionInterceptorAdapter; @Override public void addInterceptors(InterceptorRegistry registry) { // 可以添加多個攔截器，一般只添加一個 // addPathPatterns('/**') 表示對所有請求都攔截 // .excludePathPatterns('/base/index') 表示排除對/base/index請求的攔截 registry.addInterceptor(userPermissionInterceptor).addPathPatterns('/**').excludePathPatterns('/base/index'); // registry.addInterceptor(userPermissionInterceptorAdapter).addPathPatterns('/**') // .excludePathPatterns('/base/index'); }}

五、其他主要輔助類

5.1 用戶上下文類

package com.nobody.context;import com.nobody.enums.AuthenticationTypeEnum;import lombok.Getter;import lombok.Setter;import lombok.ToString;/** * @Description 用戶上下文 * @Author Mr.nobody * @Date 2020/10/25 * @Version 1.0 */@Getter@Setter@ToStringpublic class UserContext { // 用戶名稱 private String name; // 用戶ID private String userId; // 用戶類型 private AuthenticationTypeEnum type;}

5.2 校驗訪問權限注解

package com.nobody.context;import com.nobody.enums.AuthenticationTypeEnum;import lombok.Getter;import lombok.Setter;import lombok.ToString;/** * @Description 用戶上下文 * @Author Mr.nobody * @Date 2020/10/25 * @Version 1.0 */@Getter@Setter@ToStringpublic class UserContext { // 用戶名稱 private String name; // 用戶ID private String userId; // 用戶類型 private AuthenticationTypeEnum type;}

5.3 用戶上下文操作類

package com.nobody.context;import com.nobody.enums.AuthenticationTypeEnum;import com.nobody.exception.RestAPIError;import com.nobody.exception.RestException;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Component;import org.springframework.util.StringUtils;import javax.servlet.http.Cookie;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import java.util.Objects;import java.util.UUID;/** * @Description 用戶上下文操作類 * @Author Mr.nobody * @Date 2020/10/25 * @Version 1.0 */@Componentpublic class UserContextManager { private static final String COOKIE_KEY = '__userToken'; // @Autowired // private RedisService redisService; /** * 獲取用戶上下文信息 * * @param request * @return */ public UserContext getUserContext(HttpServletRequest request) { String userToken = getUserToken(request, COOKIE_KEY); if (!StringUtils.isEmpty(userToken)) { // 從緩存或者第三方獲取用戶信息 // String userContextStr = redisService.getString(userToken); // if (!StringUtils.isEmpty(userContextStr)) { // return JSON.parseObject(userContextStr, UserContext.class); // } // 因?yàn)檠菔荆瑳]集成Redis，故簡單new對象 UserContext userContext = new UserContext(); userContext.setName('Mr.nobody'); userContext.setUserId('0000001'); userContext.setType(AuthenticationTypeEnum.ADMIN); return userContext; } throw new RestException(RestAPIError.AUTH_ERROR); } public String getUserToken(HttpServletRequest request, String cookieKey) { Cookie[] cookies = request.getCookies(); if (null != cookies) { for (Cookie cookie : cookies) {if (Objects.equals(cookie.getName(), cookieKey)) { return cookie.getValue();} } } return null; } /** * 保存用戶上下文信息 * * @param response * @param userContextStr */ public void saveUserContext(HttpServletResponse response, String userContextStr) { // 用戶token實際根據自己業務進行生成，此處簡單用UUID String userToken = UUID.randomUUID().toString(); // 設置cookie Cookie cookie = new Cookie(COOKIE_KEY, userToken); cookie.setPath('/'); response.addCookie(cookie); // redis緩存 // redisService.setString(userToken, userContextStr, 3600); }}

5.4 方法參數解析器類

package com.nobody.context;import lombok.extern.slf4j.Slf4j;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.core.MethodParameter;import org.springframework.stereotype.Component;import org.springframework.web.bind.support.WebDataBinderFactory;import org.springframework.web.context.request.NativeWebRequest;import org.springframework.web.method.support.HandlerMethodArgumentResolver;import org.springframework.web.method.support.ModelAndViewContainer;import javax.servlet.http.HttpServletRequest;/** * @Description 對有UserContext參數的接口，進行攔截注入用戶信息 * @Author Mr.nobody * @Date 2020/10/25 * @Version 1.0 */@Component@Slf4jpublic class UserContextResolver implements HandlerMethodArgumentResolver { @Autowired private UserContextManager userContextManager; @Override public Object resolveArgument(MethodParameter parameter, ModelAndViewContainer mavContainer, NativeWebRequest webRequest, WebDataBinderFactory binderFactory) { log.info('>>> resolveArgument -- begin...'); HttpServletRequest request = webRequest.getNativeRequest(HttpServletRequest.class); // 從緩存獲取用戶信息賦值到接口參數中 return userContextManager.getUserContext(request); } /** * 只對UserContext參數進行攔截賦值 * * @param methodParameter * @return */ @Override public boolean supportsParameter(MethodParameter methodParameter) { if (methodParameter.getParameterType().equals(UserContext.class)) { return true; } return false; }}

六、測試驗證

package com.nobody.controller;import com.alibaba.fastjson.JSON;import com.nobody.annotation.UserAuthenticate;import com.nobody.context.UserContext;import com.nobody.context.UserContextManager;import com.nobody.enums.AuthenticationTypeEnum;import com.nobody.pojo.model.GeneralResult;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RestController;import javax.servlet.http.HttpServletResponse;/** * @Description * @Author Mr.nobody * @Date 2020/10/25 * @Version 1.0 */@RestController@RequestMapping('user')public class UserController { @Autowired private UserContextManager userContextManager; @GetMapping('login') public GeneralResult<UserContext> doLogin(HttpServletResponse response) { UserContext userContext = new UserContext(); userContext.setUserId('0000001'); userContext.setName('Mr.nobody'); userContext.setType(AuthenticationTypeEnum.ADMIN); userContextManager.saveUserContext(response, JSON.toJSONString(userContext)); return GeneralResult.genSuccessResult(userContext); } @GetMapping('personal') @UserAuthenticate(permission = true, type = AuthenticationTypeEnum.ADMIN) public GeneralResult<UserContext> getPersonInfo(UserContext userContext) { return GeneralResult.genSuccessResult(userContext); }}

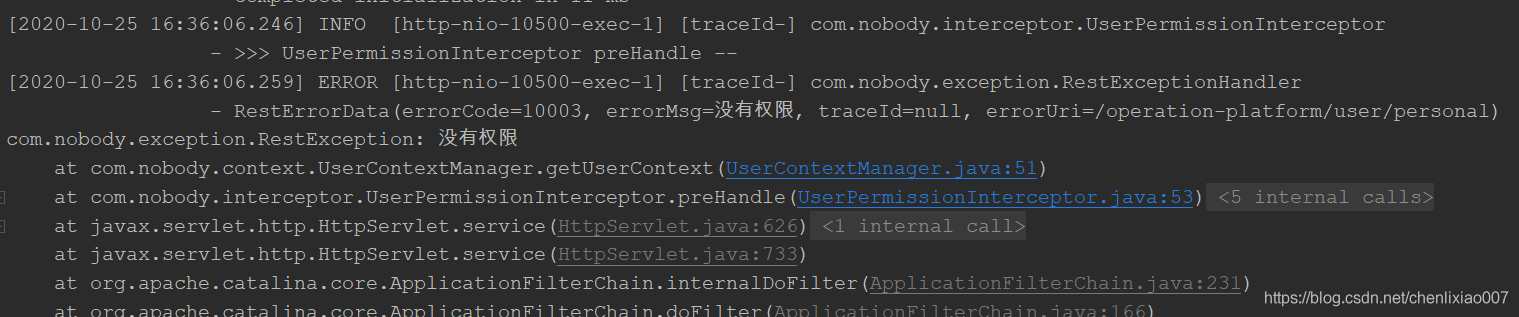

啟動服務后，在瀏覽器先調用personal接口，因?yàn)闆]有登錄，所以會報錯沒有權限：

控制臺輸出：

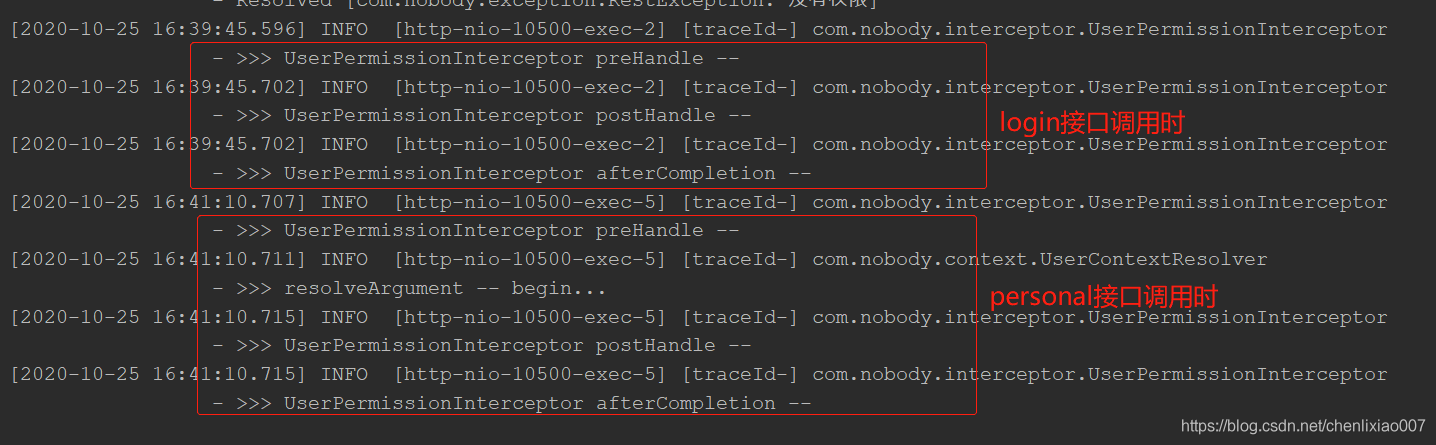

啟動服務后，在瀏覽器先訪問login接口進行登錄，再訪問personal接口，驗證通過，正確返回用戶信息：

七、Github項目

項目工程可從Github獲取，https://github.com/LucioChn/springboot-common.git
