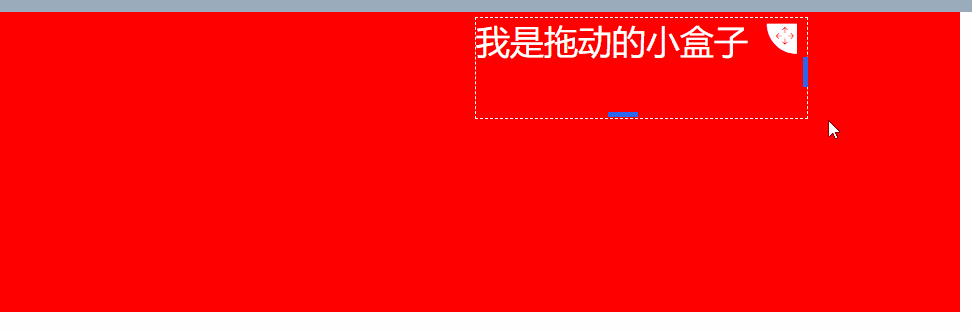

以下是效果圖：實現了div盒子在固定區域的拖動，也可改變盒子的高度和寬度，當超出邊距后無法繼續改變大小

這里說一下大致原理：拖動和改變大小是分開來操作的，接下來分別說一下

盒子拖動

這里用到了js的三個鼠標事件，分別是onmousedown(鼠標按下)、onmousemove（鼠標移動）以及onmouseup(鼠標松開)，大致流程就是鼠標按下拖動圖標進行拖動時，動態獲取當前div的left和top再重新賦值給當前div的top、left值，當鼠標松開再清除事件，至于固定在某個區域內拖動，在賦值的時候判斷當前top及l(fā)eft值是否超過限制區域的值，如果超過給最大值最小值

盒子改變大小

這里用到的也是盒子拖動的三個事件，當鼠標移入盒子左邊框觸發mousemove事件，動態計算盒子寬度重新賦值，鼠標松開注銷mousrmove事件，我將寬度和高度改變分別封裝了組件，用的時候直接調用就好

博主用的vue寫的，這里展示的也是銅鼓vue書寫的，其他都是大同小異，知道原理就好

// index.vue<template> <!-- demo --> <div id='maxBoxId'> <div : : > <div class='drag-content'> <div class='content-text'> <!-- 拖拽圖標 --> <div class='drag-icon'> <i @mousedown.stop='dragDiv($event)' @mouseup.stop='dragUp($event)' ></i> </div> {{ moveInfo.text }} </div> <!-- 寬度改變組件 --> <ChangeWidth :moveId='moveInfo.moveId' index='0' @widthChange='changeWidth' @clearEvent='clearEvent' /> <!-- 高度改變組件 --> <ChangeHeight :moveId='moveInfo.moveId' index='1' @heightChange='heightChange' @clearEvent='clearEvent' /> </div> </div> </div></template> <script>import ChangeWidth from ’../component/ChangeWidth’import ChangeHeight from ’../component/ChangeHeight’export default { components: { ChangeWidth, ChangeHeight }, name: ’demo’, data() { return { moveInfo: { dragId: ’smallDragBoxId’, moveId: ’smallMoveBoxId’, text: ’我是拖動的小盒子’, width: 400, height: 100, // 上邊距和左邊距 coordinate: { x: 180, y: 10 } } } }, methods: { // 區塊拖動 dragDiv(el, index) { // dragId: 可拖動區域唯一標識 // moveId: 改變寬度組件唯一標識 const { dragId, coordinate } = this.moveInfo let obig = document.getElementById(’maxBoxId’) let osmall = document.getElementById(dragId) // 用于保存小的div拖拽前的坐標 osmall.startX = el.clientX - osmall.offsetLeft osmall.startY = el.clientY - osmall.offsetTop document.onmousemove = e => { let left, top left = e.clientX - osmall.startX top = e.clientY - osmall.startY osmall.style.left = left + ’px’ osmall.style.top = top + ’px’ coordinate.x = left coordinate.y = top if (left <= 0) { osmall.style.left = 0 + ’px’ coordinate.x = 0 } if (top <= 0) { osmall.style.top = 0 + ’px’ coordinate.y = 0 } if (left >= obig.offsetWidth - osmall.offsetWidth) { osmall.style.left = obig.offsetWidth - osmall.offsetWidth + ’px’ coordinate.x = obig.offsetWidth - osmall.offsetWidth } if (top >= obig.offsetHeight - osmall.offsetHeight) { osmall.style.top = obig.offsetHeight - osmall.offsetHeight + ’px’ coordinate.y = obig.offsetHeight - osmall.offsetHeight } } }, dragUp(el) { document.onmousemove = null document.onmouseup = null // 調用接口保存數據 }, // 改變drag寬度尺寸 changeWidth(params) { const { index, width } = params let left const { dragId } = this.moveInfo // let obig = document.getElementById(’maxBoxId’) let osmall = document.getElementById(dragId) let boxWidth = document.getElementById(’maxBoxId’).offsetWidth left = osmall.style.left const newWidth = this.moveInfo.width + width // outWidth拖動寬度時超出box的寬度 const outWidth = Number(left.slice(0, left.length - 2)) + Number(newWidth) - Number(boxWidth) // 如果超出box將截取留下的 if (outWidth >= 0) { this.moveInfo.width = Number(boxWidth) - Number(left.slice(0, left.length - 2)) } else { this.moveInfo.width = newWidth } // 設置div的最小寬度和最大寬度 if (this.moveInfo.width < 200) { this.moveInfo.width = 200 } if (this.moveInfo.width > 900) { this.moveInfo.width = 900 } }, // 改變drag高度 heightChange(params) { const { index, height } = params let top let osmall = document.getElementById(this.moveInfo.dragId) let boxHeight = document.getElementById(’maxBoxId’).offsetHeight top = osmall.style.top const newHeight = this.moveInfo.height + height // outHeight拖動寬度時超出box的高度 const outHeight = Number(top.slice(0, top.length - 2)) + Number(newHeight) - Number(boxHeight) // 如果超出box將截取留下的 if (outHeight >= 0) { this.moveInfo.height = Number(boxHeight) - Number(top.slice(0, top.length - 2)) } else { this.moveInfo.height = newHeight } // 設置div的最小寬度和最大寬度 if (this.moveInfo.height < 100) { this.moveInfo.height = 100 } if (this.moveInfo.height > 200) { this.moveInfo.height = 200 } }, // 清除鼠標事件 clearEvent() { document.onmousemove = null document.onmouseup = null } }}</script><style lang='scss' scoped>.demo { position: relative; width: 100%; z-index: 10; width: 1200px; background: red; height: 300px; margin-bottom: 1000px; margin-left: 100px; .drag-class { background: rgba(255, 255, 255, 0); position: absolute; .drag-content { position: relative; height: 100%; .content-text { border: 1px dashed #ffffff; font-size: 34px; color: #ffffff; margin-top: 5px; position: relative; height: 100%; .drag-icon { position: absolute; right: 10px; top: 5px; float: left; // margin-right: 10px; .down-dragger { cursor: move; font-size: 30px; color: #dbdce0; color: #ffffff; } } } } }}</style>

以下是改變大小的組件

<template> <!-- 拖動右邊距改變div寬度 --> <div : @mousedown='mouseDown'></div></template> <script>export default { name: ’ChangeWidth’, props: [’index’, ’moveId’], data() { return { lastX: ’’ } }, created() { document.addEventListener(’mouseup’, this.mouseUp) }, destroyed() { document.removeEventListener(’mouseup’, this.mouseUp) }, methods: { mouseDown(event) { document.addEventListener(’mousemove’, this.mouseMove) this.lastX = event.screenX }, mouseMove(e) { this.$emit(’widthChange’, { width: e.screenX - this.lastX, index: this.index }) this.lastX = e.screenX }, mouseUp() { this.lastX = ’’ document.removeEventListener(’mousemove’, this.mouseMove) this.$emit(’clearEvent’) } }}</script><style lang='less' scoped>.x-handle { width: 5px; cursor: e-resize; background: #2866f0; height: 30px; position: absolute; right: 0; top: 40%;}</style>

改變高度的組件原理和寬度一樣，避免代碼重復就不上傳了

上面就是大致流程和源碼。
