系統程序突然報錯，報錯信息如下：

The transaction log for database ’@dbname’ is full. To find out why space in the log cannot be reused, see the log_reuse_wait_desc column in sys.databases

此時查看log文件，已達2T。

當時的緊急處理方案是，移除掉鏡像，修改數據庫恢復模式（由full修改為simple），收縮日志。

為了防止類似問題再次發生，需對log 文件的大小進行監控，當?shù)竭_(dá)閾值后，觸發告警。

配置文件qqmssqltest_db_server_conf.ini

同過此配置文件獲取DB Server信息、DB信息、UID信息、郵件服務器信息等。

[sqlserver]db_user = XXXXXXdb_pwd = XXXXXXX[sqlserver_qq]db_host = 110.119.120.114db_port = 1433[windows]user = pwd = [mail]host = zheshiceshidemail.qq.comport = 25user = pwd = sender = zhejiushiceshidebuyaodangzhen@qq.com

獲取連接串的組件mssql_get_db_connect.py

# -*- coding: utf-8 -*-import sysimport osimport datetimeimport configparserimport pymssql# pip3 install pymssql-2.1.4-cp37-cp37m-win_amd64.whl# pip3 install pymssql -i https://pypi.doubanio.com/simple# 獲取連接串信息def mssql_get_db_connect(db_host, db_port): db_host = db_host db_port = db_port db_ps_file = os.path.join(sys.path[0], 'qqmssqltest_db_server_conf.ini') config = configparser.ConfigParser() config.read(db_ps_file, encoding='utf-8') db_user = config.get(’sqlserver’, ’db_user’) db_pwd = config.get(’sqlserver’, ’db_pwd’) conn = pymssql.connect(host=db_host, port=db_port, user=db_user, password=db_pwd, charset='utf8', login_timeout=5, timeout=600, autocommit=True) return conn

執行SQL語句的組件mysql_exec_sql.py

# -*- coding: utf-8 -*-import mysql_get_db_connectdef mysql_exec_dml_sql(db_host, db_port, exec_sql): conn = mysql_get_db_connect.mysql_get_db_connect(db_host, db_port) with conn.cursor() as cursor_db:cursor_db.execute(exec_sql)conn.commit()def mysql_exec_select_sql(db_host, db_port, exec_sql): conn = mysql_get_db_connect.mysql_get_db_connect(db_host, db_port) with conn.cursor() as cursor_db:cursor_db.execute(exec_sql)sql_rst = cursor_db.fetchall() return sql_rstdef mysql_exec_select_sql_include_colnames(db_host, db_port, exec_sql): conn = mysql_get_db_connect.mysql_get_db_connect(db_host, db_port) with conn.cursor() as cursor_db:cursor_db.execute(exec_sql)sql_rst = cursor_db.fetchall()col_names = cursor_db.description return sql_rst, col_names

發郵件的功能send_monitor_mail.py

# -*- coding: utf-8 -*-# pip3 install PyEmailimport smtplibfrom email.mime.text import MIMETextimport configparserimport osimport sys# 發送告警郵件def send_monitor_mail(mail_subject, mail_body, mail_receivers='testwukongbaigujing@qq.com'): db_ps_file = os.path.join(sys.path[0], 'qqmssqltest_db_server_conf.ini') config = configparser.ConfigParser() config.read(db_ps_file, encoding='utf-8') mail_host = config.get(’mail’, ’host’) mail_port = config.get(’mail’, ’port’) # mail_user = config.get(’mail’, ’user’) # mail_pwd = config.get(’mail’, ’pwd’) sender = config.get(’mail’, ’sender’) # receivers = config.get(’mail’, ’receivers’) # 發送HTML格式郵件 message = MIMEText(mail_body, ’html’, ’utf-8’) # message = MIMEText(mail_body, ’plain’, ’utf-8’) message[’subject’] = mail_subject message[’From’] = sender message[’To’] = mail_receivers try:smtpObj = smtplib.SMTP()smtpObj.connect(mail_host, mail_port) # 25 為 SMTP 端口號# SMTP AUTH extension not supported by server.# https://github.com/miguelgrinberg/microblog/issues/76# smtpObj.ehlo()# smtpObj.starttls()# smtpObj.login(mail_user, mail_pwd)smtpObj.sendmail(sender, mail_receivers, message.as_string())smtpObj.quit()print('郵件發送成功') except Exception as e:print(e) # except smtplib.SMTPException:# print('Error: 無法發送郵件')3.主要功能代碼

收集到的DB數據文件的信息保存到表mssql_dblogsize中，其建表的腳本如下：

CREATE TABLE [dbo].[mssql_dblogsize]( [id] [int] IDENTITY(1,1) NOT NULL, [createtime] [datetime] NULL, [vip] [nvarchar](100) NULL, [port] [nvarchar](100) NULL, [Environment] [nvarchar](200) NULL, [Dbname] [varchar](200) NULL, [Logical_Name] [varchar](200) NULL, [Physical_Name] [varchar](1500) NULL, [Size] [bigint] NULL,PRIMARY KEY CLUSTERED ( [id] ASC)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]) ON [PRIMARY]GOALTER TABLE [dbo].[mssql_dblogsize] ADD DEFAULT (getdate()) FOR [createtime]GO

為了方便對表mssql_dblogsize的數據進行管理和展示，在其基礎上抽象加工出了一個視圖v_mssql_dblogsize，注意Size大小的轉換（Size/128/1024 as SizeGB）

創建視圖的腳本如下：

CREATE view [dbo].[v_mssql_dblogsize]as SELECT [id] ,[createtime] ,[vip] ,[port] ,[Environment] ,[Dbname] ,[Logical_Name] ,[Physical_Name] ,Size/128/1024 as SizeGB FROM [dbo].[mssql_dblogsize] where size >50*128*1024and Physical_Name like ’%ldf%’GO

本測試實例使用的數據庫為qqDB，監控的各個DB Server保存在了表QQDBServer中，注意Port 不一定為標準端口1433.

collect_mssql_dblogsize_info.py

# -*- coding: utf-8 -*-import sysimport osimport configparserimport pymssqlimport mssql_get_db_connectimport mssql_exec_sqlfrom datetime import datetimedef collect_mssql_dblogsize_info(): db_ps_file = os.path.join(sys.path[0], 'qqmssqltest_db_server_conf.ini') config = configparser.ConfigParser() config.read(db_ps_file, encoding='utf-8') m_db_host = config.get(’sqlserver_qq’, ’db_host’) m_db_port = config.getint(’sqlserver_qq’, ’db_port’) # 獲取需要遍歷的DB列表 exec_sql_1 = '''SELECT IP, case Port when ’1444,1433’ then ’1433’ else Port end as Port, EnvironmentFROM qqDB.dbo.QQDBServer where InUse =1 AND ServerType IN (’SQL’) and IP=VIP ; ''' sql_rst_1 = mssql_exec_sql.mssql_exec_select_sql(m_db_host, m_db_port, exec_sql_1) for j in sql_rst_1:db_host_2 = j[0]db_port_2 = j[1]db_Environment = j[2]exec_sql_2 = '''select ’''' + db_host_2 + '''’ as vip, ’''' + db_port_2 + '''’ as port, ’''' + db_Environment + '''’ as Environment,DB_NAME(database_id) AS DatabaseName,Name AS Logical_Name,Physical_Name, size FROM master.sys.master_files;'''try: sql_rst_2 = mssql_exec_sql.mssql_exec_select_sql(db_host_2, db_port_2, exec_sql_2)except Exception as e: print(e)for k in sql_rst_2: exec_sql_3 = ''' insert into qqDB..mssql_dblogsize([vip], [port], [Environment], [Dbname], [Logical_Name], [Physical_Name], [Size]) values(’%s’, ’%s’, ’%s’, ’%s’, ’%s’, ’%s’, ’%s’); ''' conn = mssql_get_db_connect.mssql_get_db_connect(m_db_host, m_db_port) with conn.cursor() as cursor_db: cursor_db.execute(exec_sql_3 % (k[0], k[1], k[2], k[3], k[4], k[5], k[6] )) conn.commit()collect_mssql_dblogsize_info()

告警郵件的功能實現為mssql_alert_dblogsize.py,此份代碼的告警閾值設置的為50G，數據來自于視圖v_mssql_dblogsize。

# -*- coding: utf-8 -*-import sysimport osimport configparserimport pymssqlimport mssql_get_db_connectimport mssql_exec_sqlimport datetimeimport send_monitor_mailimport pandas as pddef mssql_alert_dblogsize(): mail_subject = 'SQL Server DB Log Size Greater than 50G, please check!!! ' mail_receivers = 'testDBAgrp@qtiantianq.com' db_ps_file = os.path.join(sys.path[0], 'qqmssqltest_db_server_conf.ini') config = configparser.ConfigParser() config.read(db_ps_file, encoding='utf-8') m_db_host = config.get(’sqlserver_qq’, ’db_host’) m_db_port = config.getint(’sqlserver_qq’, ’db_port’) # 獲取需要遍歷的DB列表 exec_sql_4 = '''SELECT [vip] as IP,[port],[Environment],[Dbname] ,[Logical_Name],[Physical_Name],[SizeGB],[createtime] FROM qqDB.[dbo].[v_mssql_dblogsize] order by VIP,Dbname; ''' sql_rst_4, col_name = mssql_exec_sql.mssql_exec_select_sql_include_colnames(m_db_host, m_db_port, exec_sql_4) # print(sql_rst_4) if len(sql_rst_4):mail_time = datetime.datetime.now().strftime(’%Y-%m-%d %H:%M:%S’)columns = []for i in range(len(col_name)): columns.append(col_name[i][0])df = pd.DataFrame(columns=columns)for i in range(len(sql_rst_4)): df.loc[i] = list(sql_rst_4[i])mail_body = df.to_html(index=False, justify='left').replace(’<th>’, ’<th style = 'color:red; text-align:left; background-color: yellow'>’)mail_html = '<html><body><h4>' + 'Deal All : ' + '<br><h4>' + '以下數據庫的db log文件，已大于50G.請及時檢查，謝謝！ ' + '<br><h4>' + mail_body + '</body></html>'send_monitor_mail.send_monitor_mail(mail_subject=mail_subject, mail_body=mail_html, mail_receivers=mail_receivers)mssql_alert_dblogsize()4.實現

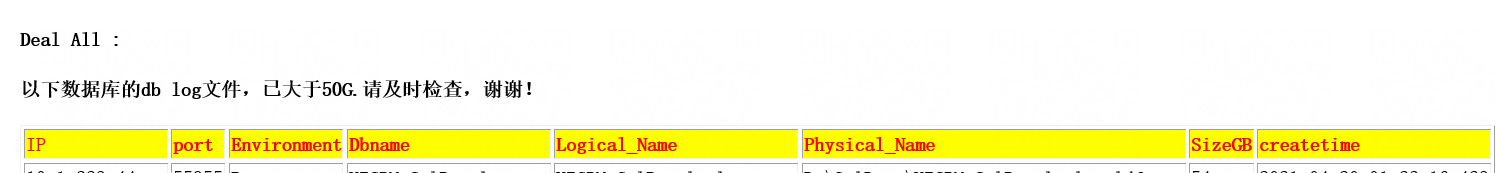

定時任務是通過windows的計劃任務來實現的,在此不做過多的敘述。告警郵件的部分截圖如下:

1.報錯定位，判斷是不是log文件過大

https://blog.csdn.net/weixin_30785593/article/details/99912405

2.關于為什么數據庫log文件過大，我們可以參考以下分享的文章

https://blog.csdn.net/chinadm123/article/details/44941275
